Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 50V AC，DC |
| Rated current | 1A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 500M min |
| Withstand voltage | 500V AC/minute |
| Ambient temperature | -25°C〜+85°C |
| Wire range | AWG#32〜#26 |
| Materials | |
| Housing | Nylon UL94-V0(2) |
| Wafer | Nylon UL94-V0(2) |
| Terminal | Phosphor bronze, Tin plated |

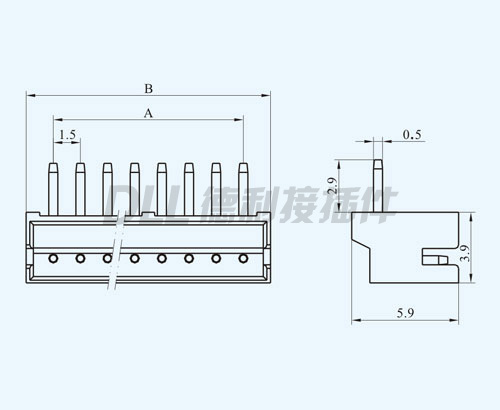

Drawing
| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2 | ZH-2Y | ZH-2A/ZH-2AW/ZH-2AWD | 1.50 | 4.50 |
| 3 | ZH-3Y | ZH-3A/ZH-3AW/ZH-3AWD | 3.00 | 6.00 |
| 4 | ZH-4Y | ZH-4A/ZH-4AW/ZH-4AWD | 4.50 | 7.50 |
| 5 | ZH-5Y | ZH-5A/ZH-5AW/ZH-5AWD | 6.00 | 9.00 |
| 6 | ZH-6Y | ZH-6A/ZH-6AW/ZH-6AWD | 7.50 | 10.50 |
| 7 | ZH-7Y | ZH-7A/ZH-7AW/ZH-7AWD | 9.00 | 12.00 |
| 8 | ZH-8Y | ZH-8A/ZH-8AW/ZH-8AWD | 10.50 | 13.50 |
| 9 | ZH-9Y | ZH-9A/ZH-9AW/ZH-9AWD | 12.00 | 15.00 |
| 10 | ZH-10Y | ZH-10A/ZH-10AW/ZH-10AWD | 13.50 | 16.50 |
| 11 | ZH-11Y | ZH-11A/ZH-11AW/ZH-11AWD | 15.00 | 18.00 |
| 12 | ZH-12Y | ZH-12A/ZH-12AW/ZH-12AWD | 16.50 | 19.50 |
| 13 | ZH-13Y | ZH-13A/ZH-13AW/ZH-13AWD | 18.00 | 21.00 |
| 14 | ZH-14Y | ZH-14A/ZH-14AW/ZH-14AWD | 19.50 | 22.50 |
| 15 | ZH-15Y | ZH-15A/ZH-15AW/ZH-15AWD | 21.00 | 24.00 |
